0.75" Horn Tweeters - 4Ω

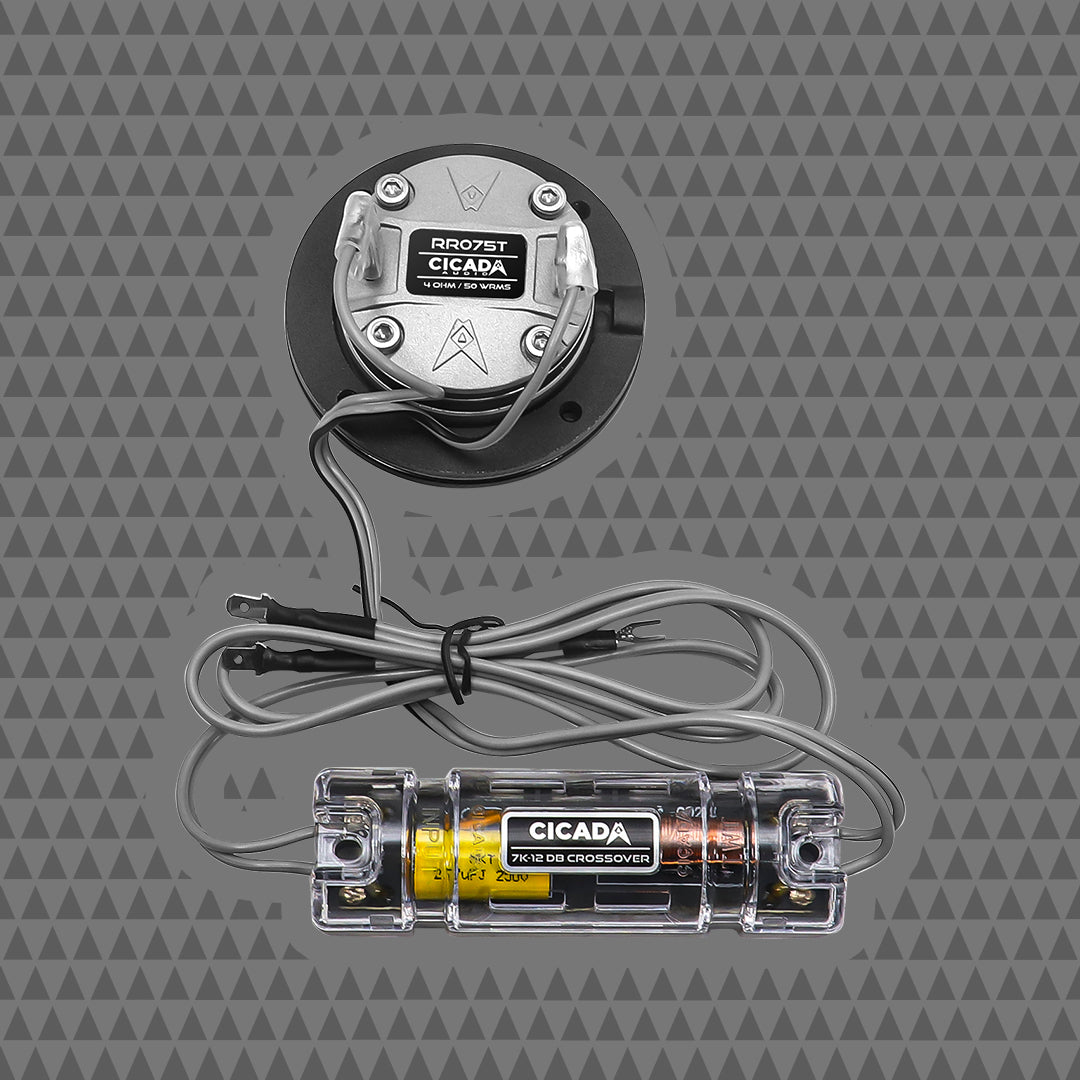

RR075T – 1” SHALLOW RING RADIATOR HORN TWEETER

• 50WRMS/100W MAX Power Handling- per tweeter
• Neodymium High Energy/ Light Weight N35 Magnet structure
• Heavy Duty/ Die-cast Aluminum Basket
• 4 Ohm for increased durability
• 1.0” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
• Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
• Frequency Response: 2KHz -20Khz+/-5dB
• High Sensitivity: 100dB 1W/1M Average (1W/1M – 2.83V)
• 12dB -7kHz Crossover with custom tooled/ Vented crossover case
• Mounting Depth: 1.13” / 28.9mm
• Mounting Diameter: 2” / 50mm
