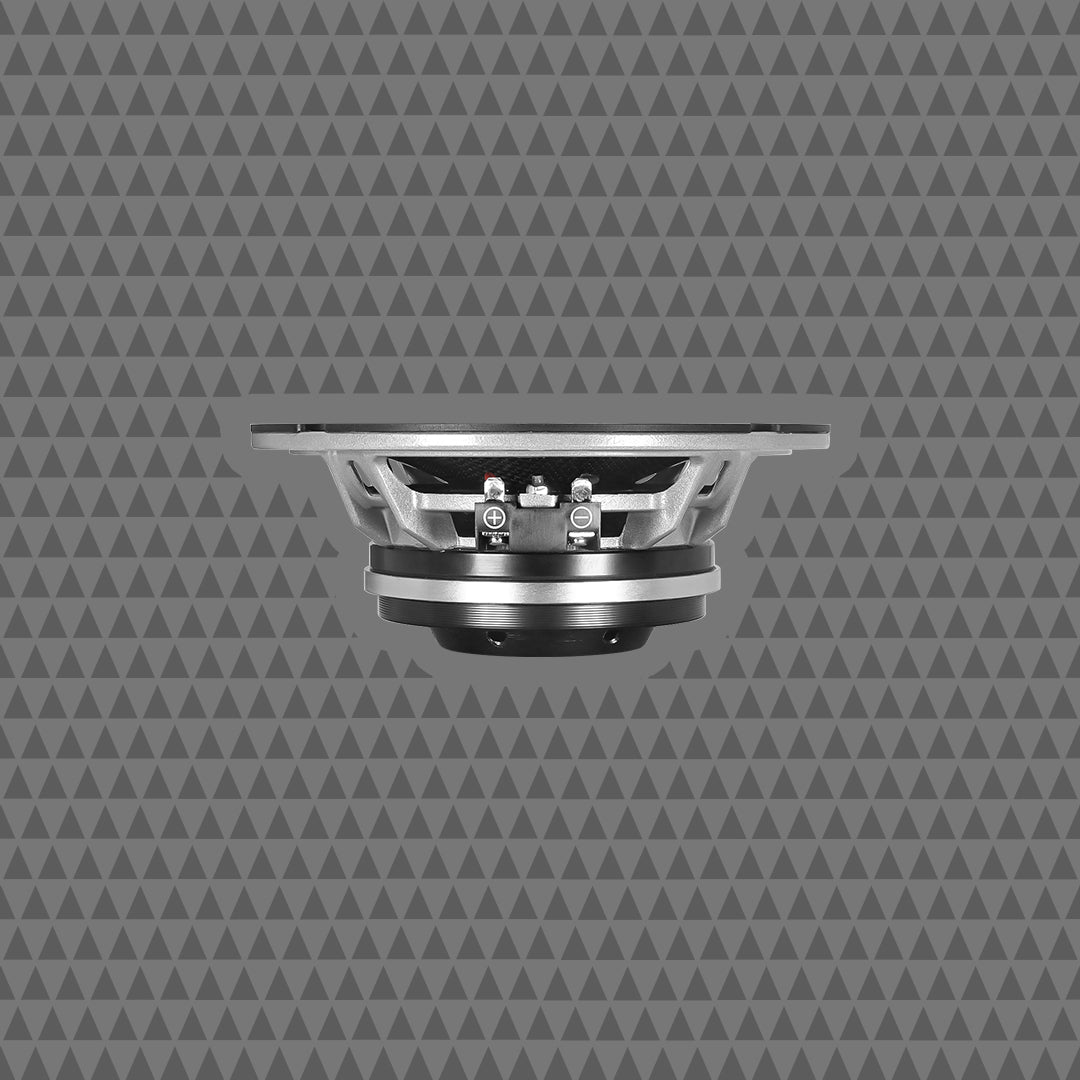

6.5″ Mid-Bass Component Speaker Kit - 2Ω

FEATURES:

• Designed for 2014-2023 H-D® factory designed locations
• Rain or Shine™ all weather performance design
• OFC Copper shorting ring for extended high frequency performance
• Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
• OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
• N35SH Neodymium magnet motor
• Die cast Aluminum custom tooled basket with Vortex Flow Venting™
• Two (2) year warranty

SPECIFICATIONS:

• 2Ω – 6.5-inch mid-bass driver
• Power handling: 250W RMS/500W MAX
• Voice Coils: 2.0-inch/51mm mid-bass
• Cone: Carbon Matrix Composite™
• Magnet: Neodymium
• Sensitivity: 94dB, 1W / 1M
• response 70Hz – 20kHz +/- 3dB
• Mounting Depth: 2.64-inch/67mm
• Mounting Diameter: 5.67-inch/144mm
• 4Ω – 1.0-inch shallow ring radiator horn tweeter
• Power handling: 200W RMS/400W MAX
• Voice Coils: 1.0-inch/25mm tweeter
• Tweeter Dome: Aluminum
• Crossover: 12dB-7kHz external custom tooled, vented, encased crossover
• Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
• Magnet: Neodymium
• Sensitivity: 107dB, 1W / 1M
• response 2kHz – 20kHz +/- 3dB
• Mounting Depth: 0.75-inch/18mm
• Mounting Diameter: 2.0-inch/50mm
