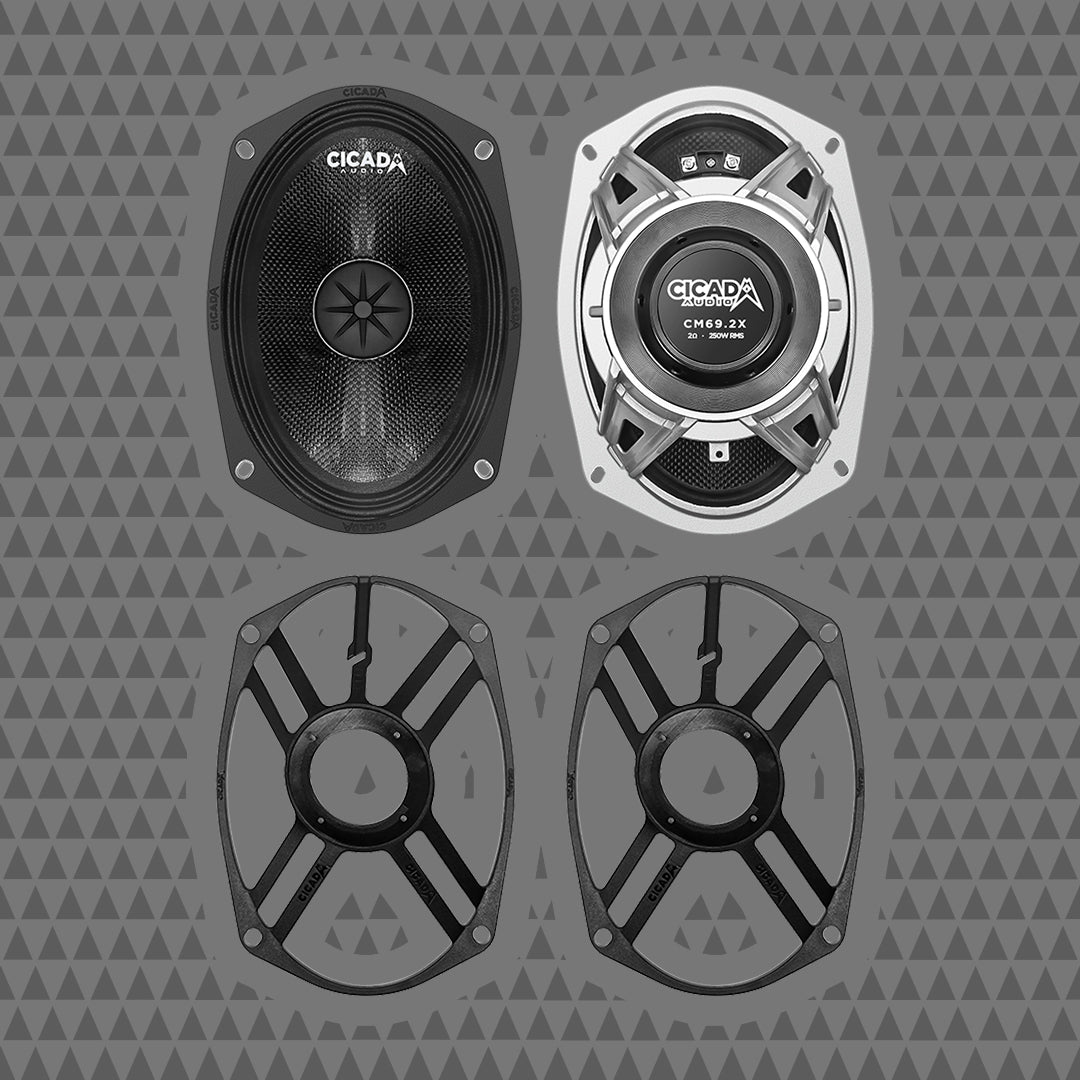

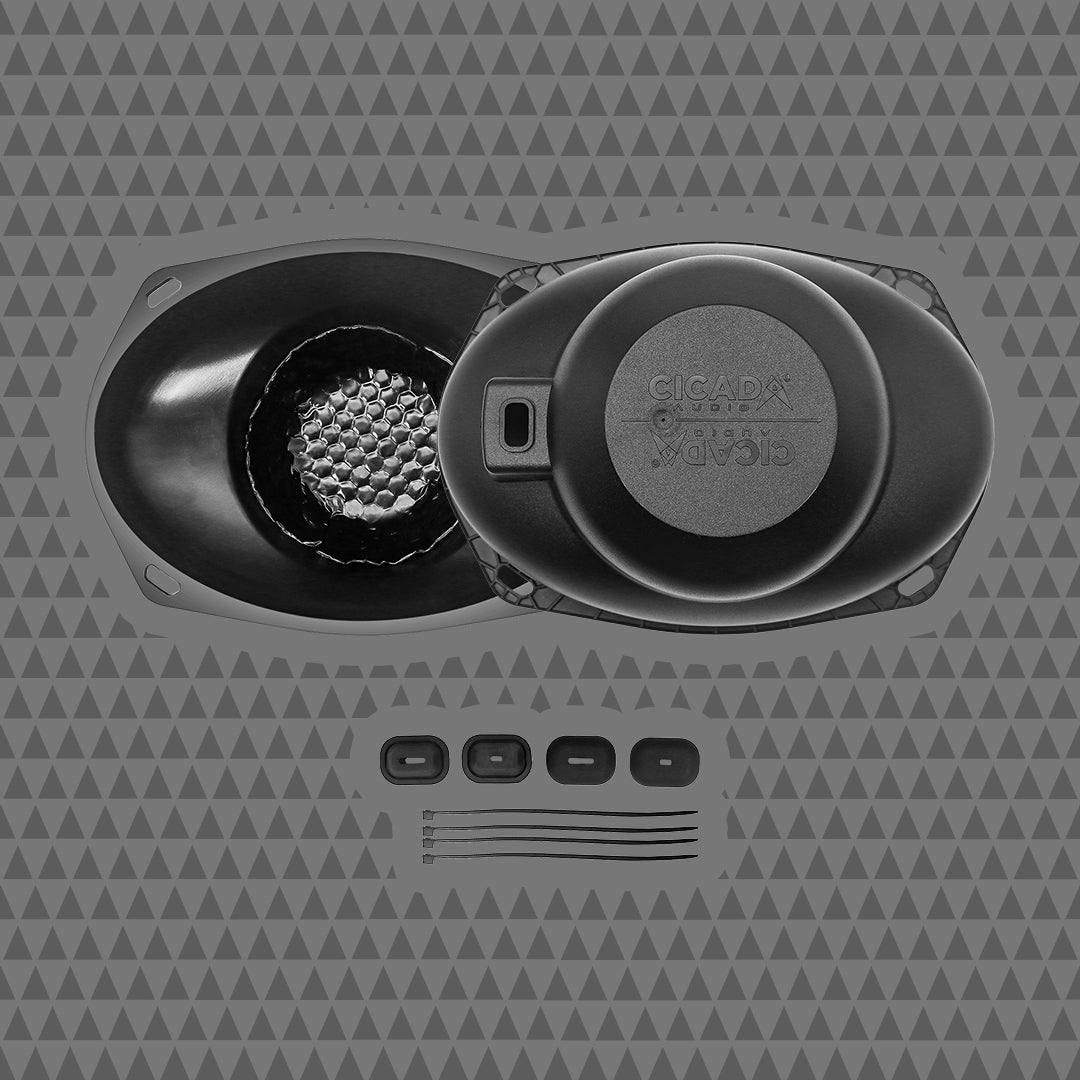

6x9" Mid-Bass 2-way Component Speaker Kit - 2Ω

MID-BASS FEATURES

• Rain or Shine™ all weather performance design
• OFC Copper shorting ring for extended high frequency performance
• Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
• OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
• N35SH Neodymium magnet motor
• Die cast Aluminum custom tooled basket with Vortex Flow Venting™
• Two (2) year warranty

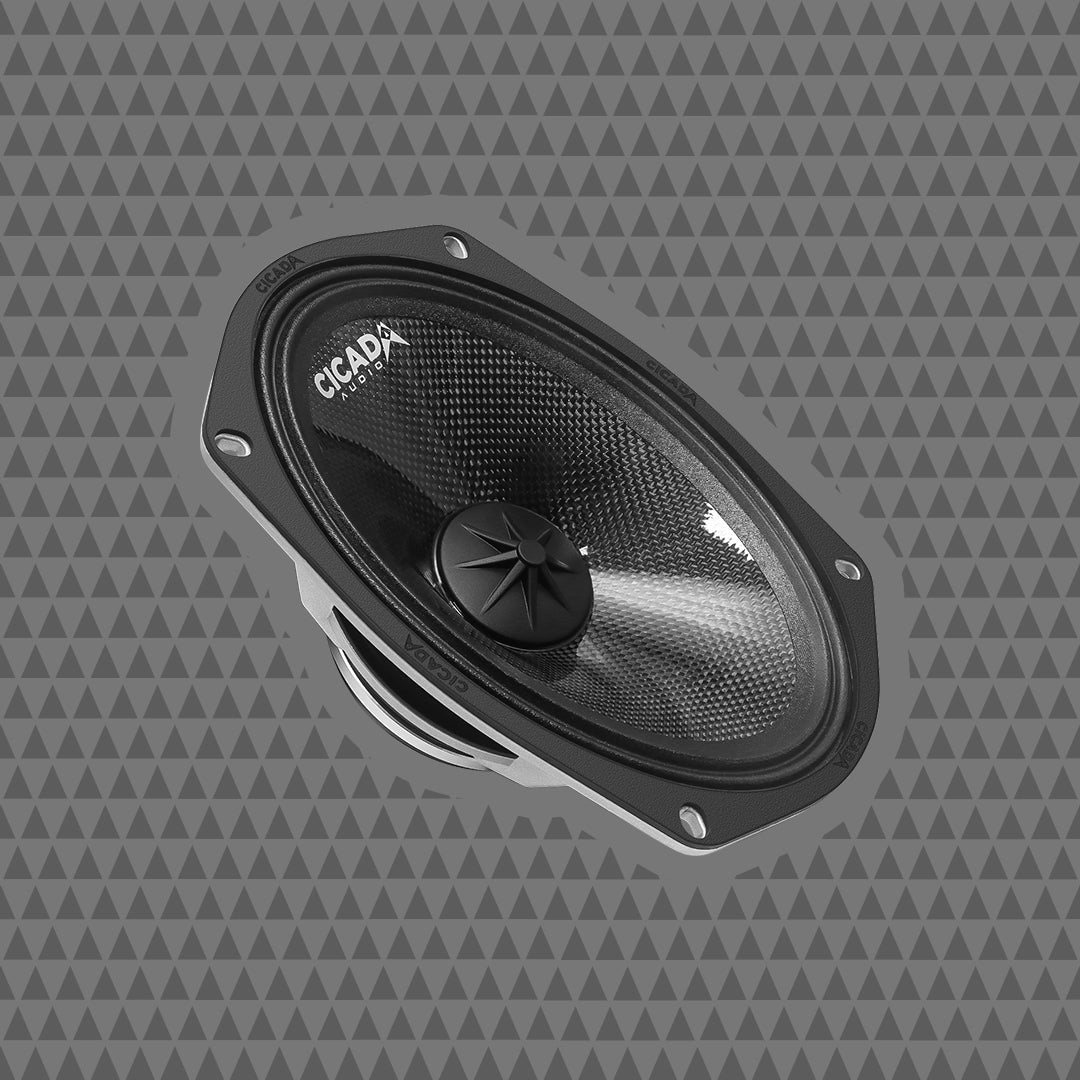

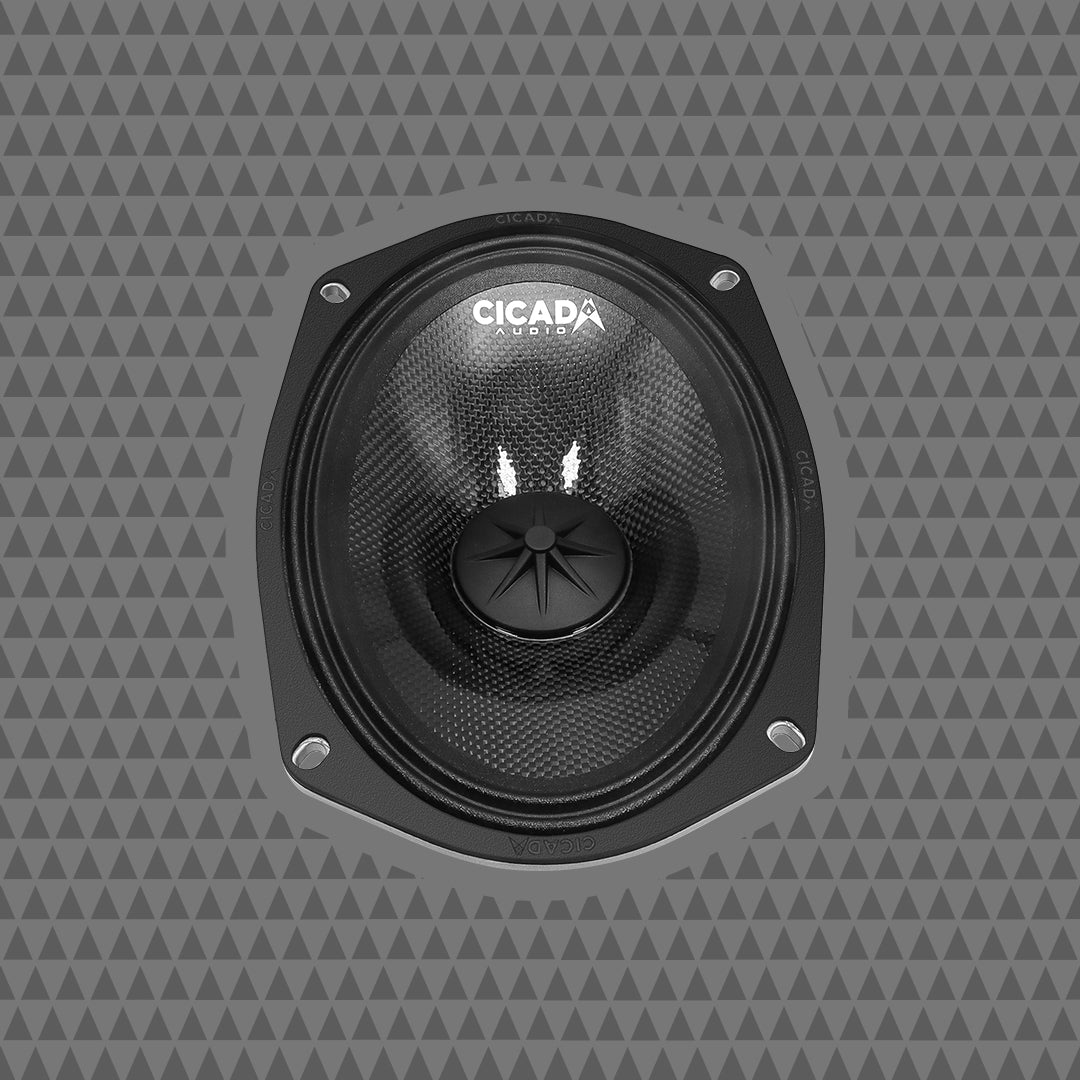

MID_BASS SPECIFICATIONS

• 2Ω / 6X9-inch mid-bass driver
• 4Ω / 6X9-inch mid-bass driver
• Power Handling: 250W RMS / 500W MAX
• Voice Coil: 2-inch/51mm mid-bass
• Cone: Carbon Matrix Composite™
• Magnet: Neodymium
• Sensitivity: 94 dB, 1W / 1M
• Frequency Response: 70 Hz – 10 kHz +/- 3 dB
• Mounting Depth: 3.26-inch/83mm
• Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm

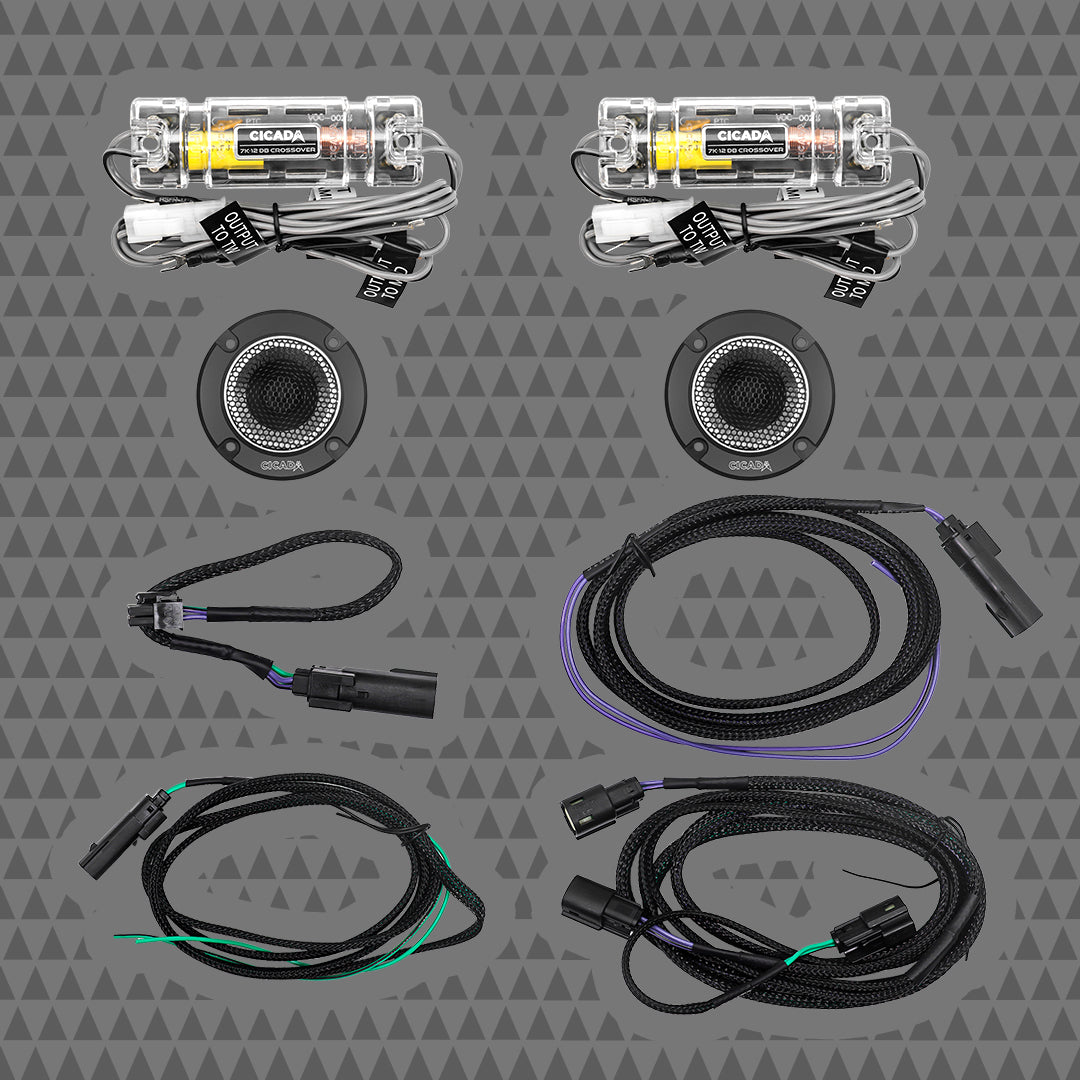

TWEETER FEATURES

• Rain or Shine™ all weather performance design
• Aluminum tweeter dome diaphragm delivers brighter sound and maximized efficiency
• OFC Copper wire voice coil offers great sound while generating less heat
• Custom tooled, vented, encased external crossover
• Field replaceable diaphragm
• Aluminum die cast custom tooled backplate
• N35SH Neodymium magnet motor
• Two (2) year warranty

TWEETER SPECIFICATIONS

• 4Ω / 1-inch shallow ring radiator horn tweeter
• Power Handling: 50W RMS / 100W MAX
• Voice Coil: 1-inch/25mm tweeter
• Tweeter Dome: Aluminum
• Crossover: 12 dB @ 7 kHz
• Magnet: Neodymium
• Sensitivity: 101 dB, 1W / 1M
• Frequency Response: 2 kHz – 20 kHz +/- 3 dB
• Mounting Depth: 1.1-inch/28mm
• Mounting Diameter: 2-inch/50.8mm
