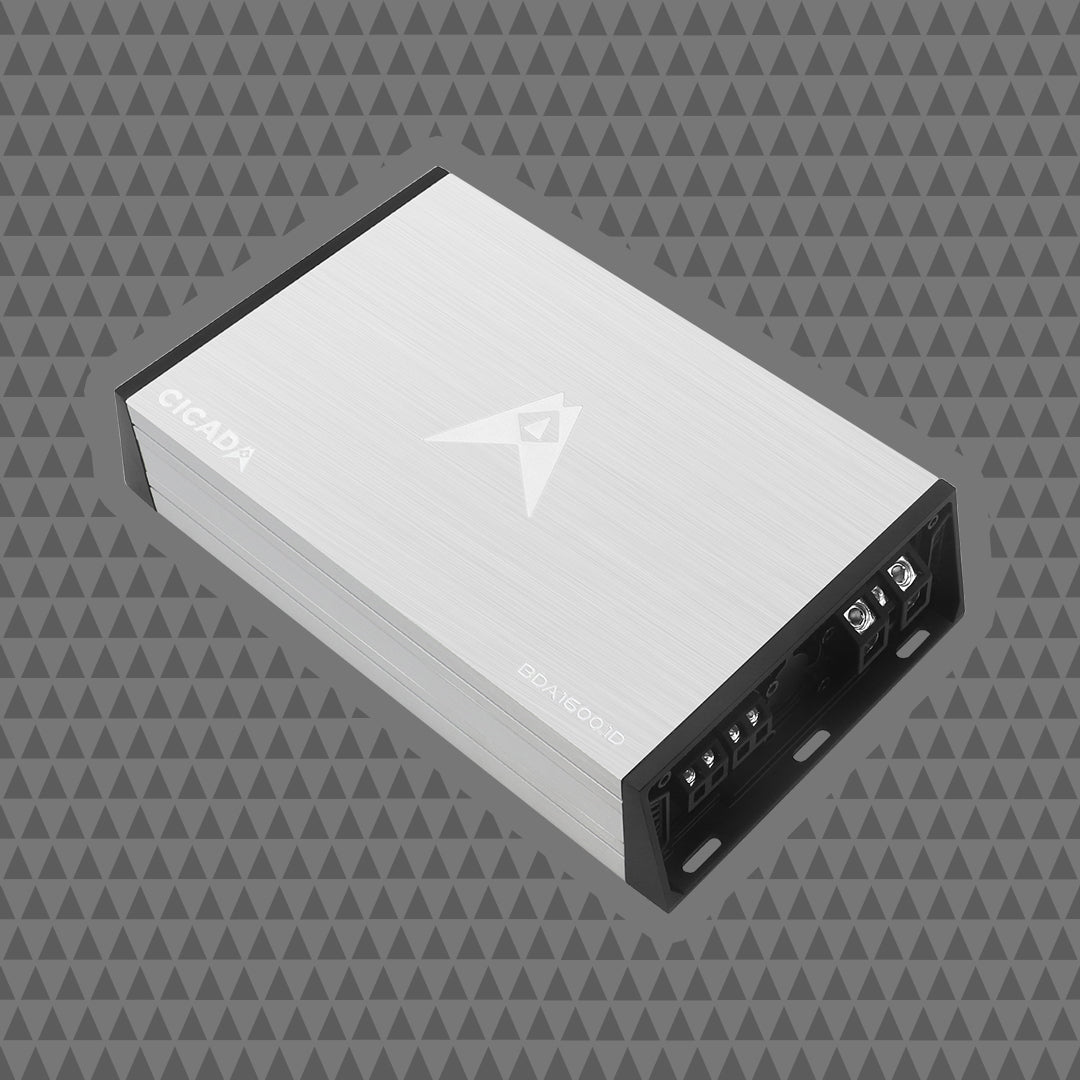

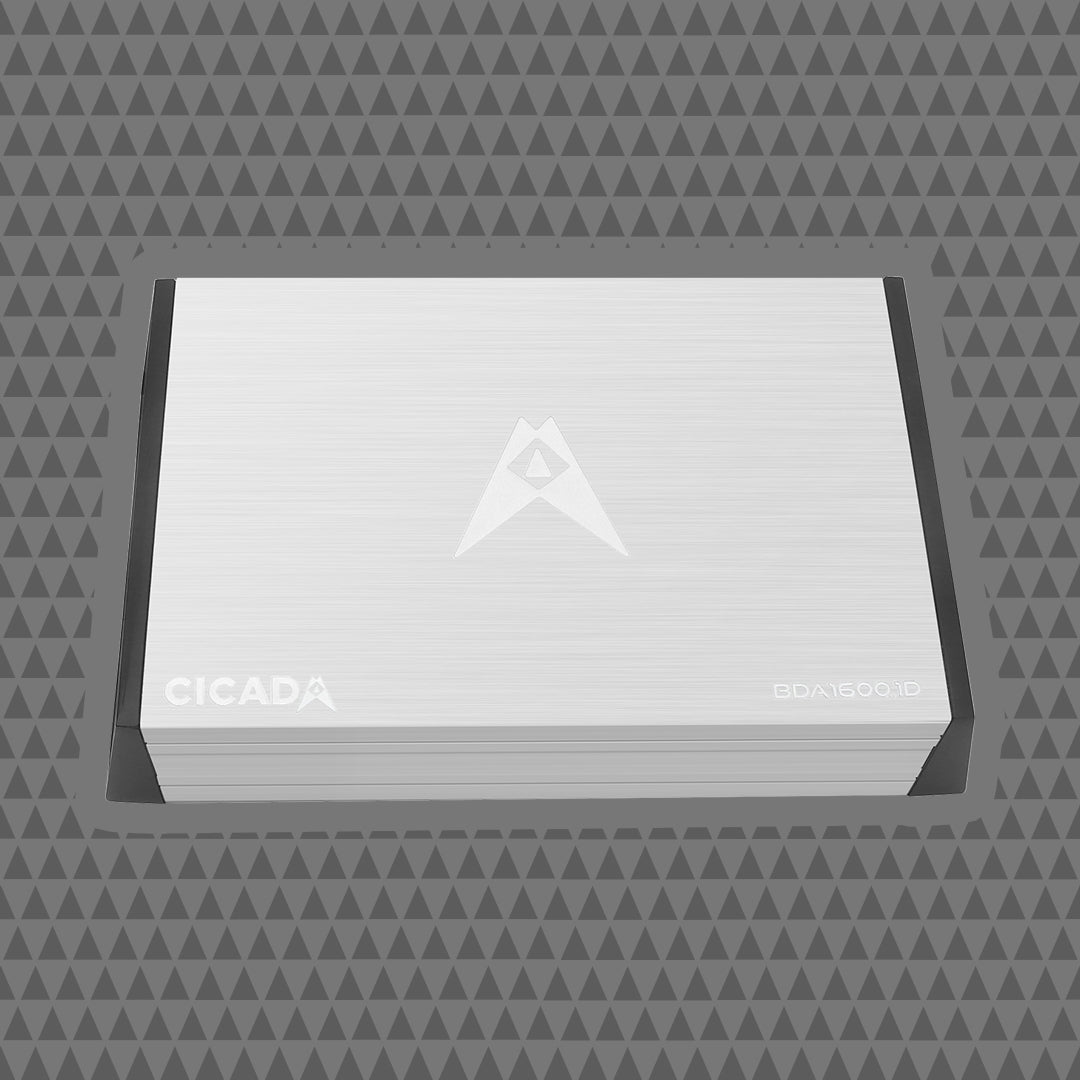

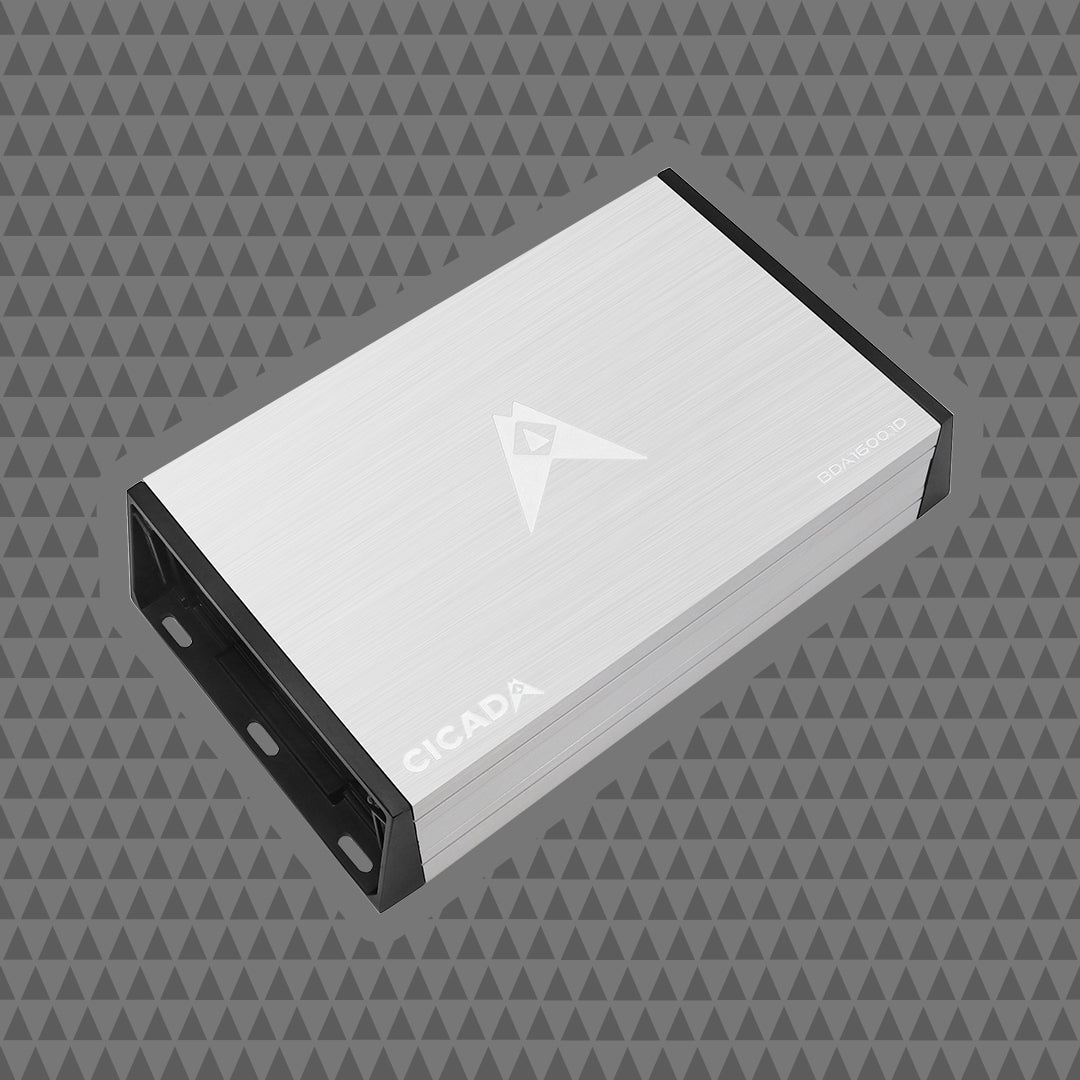

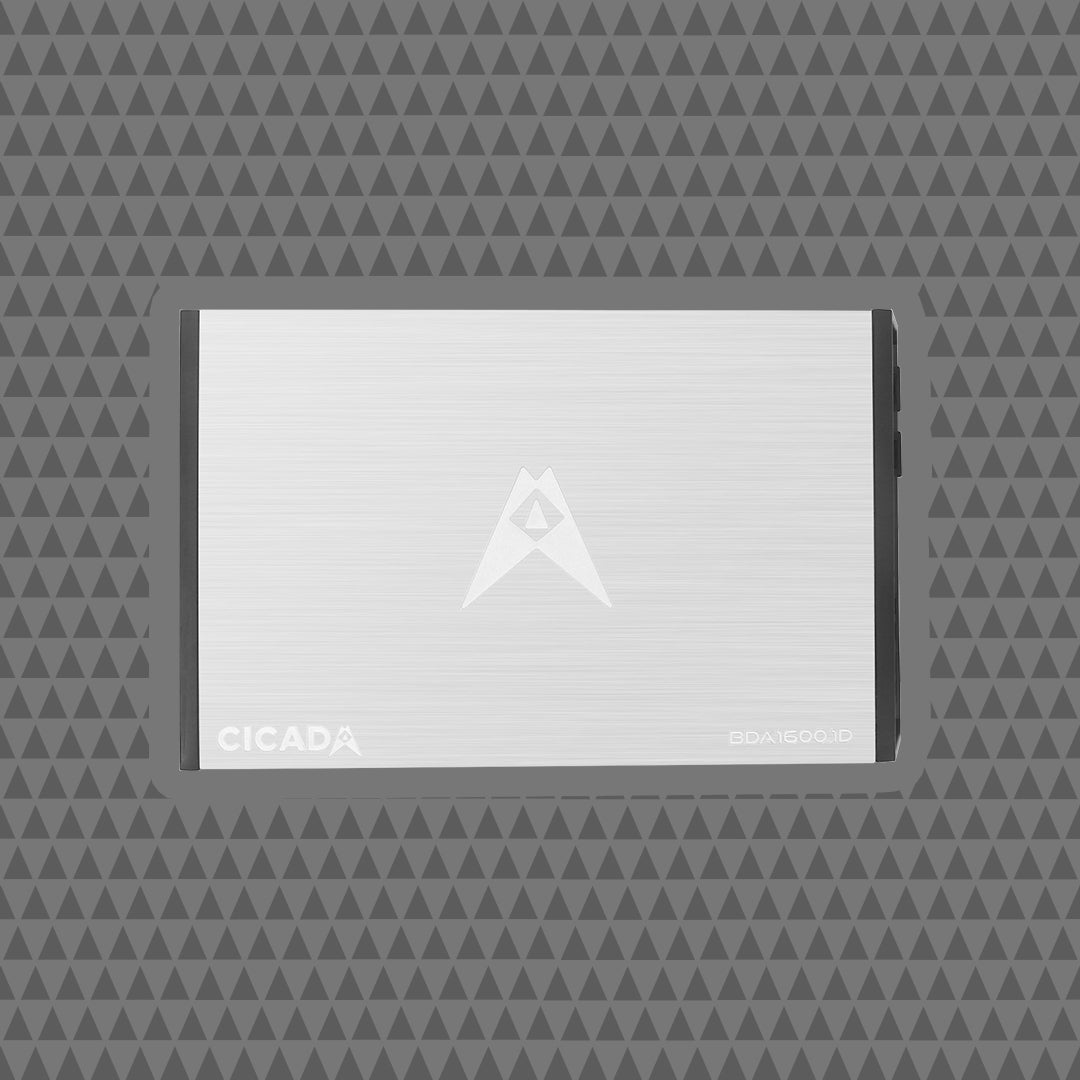

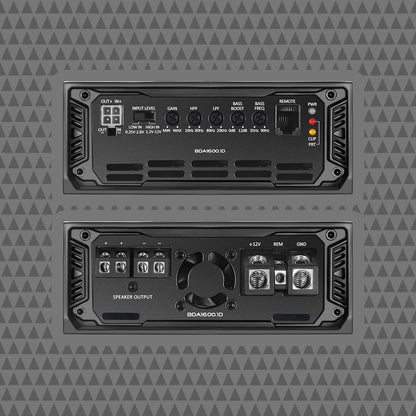

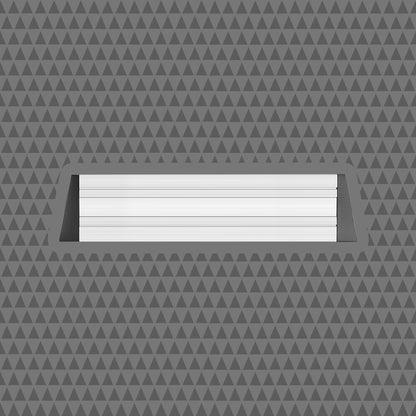

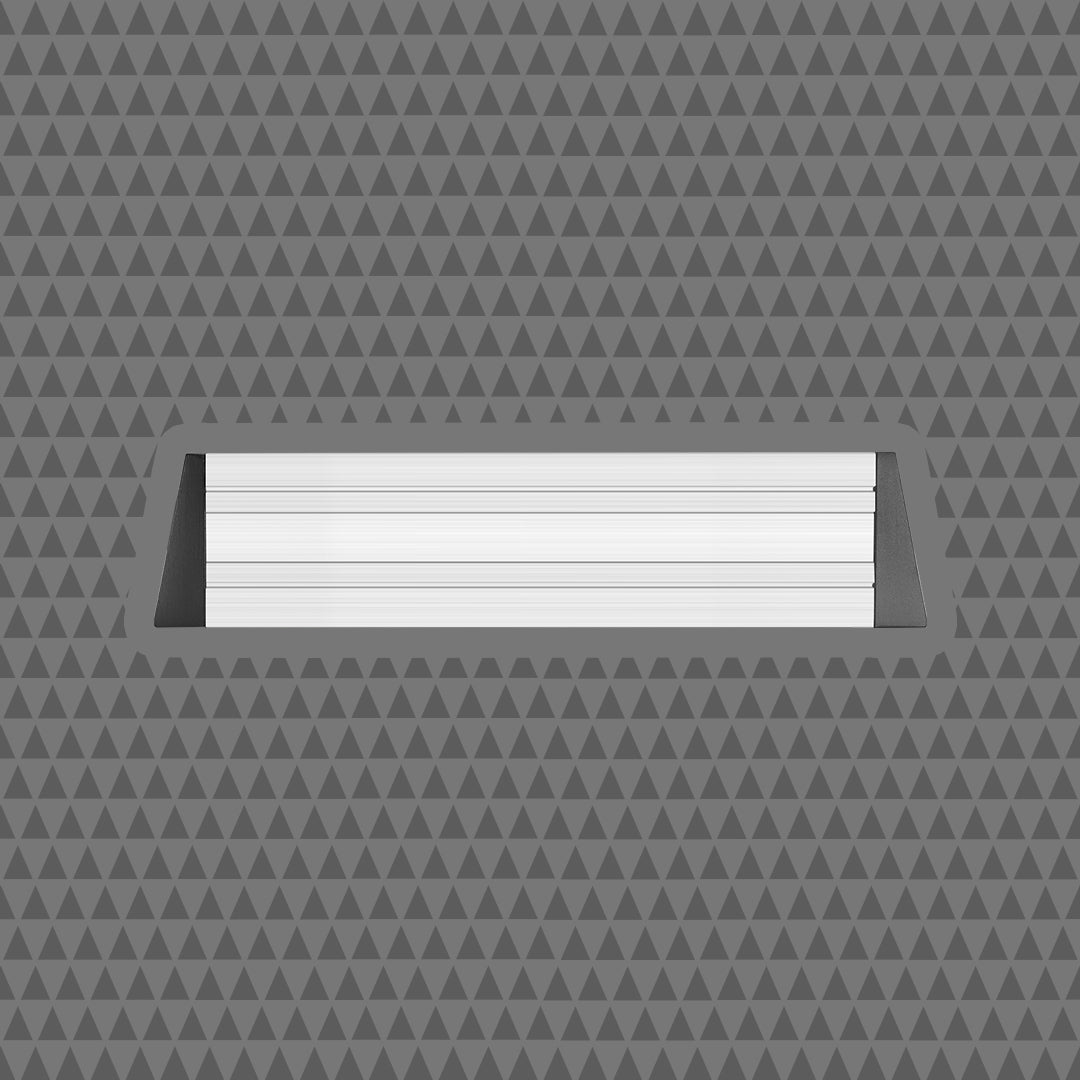

1600W x 1 Amplifier

MONO POWER AMPLIFIER

Requires 4 AWG Power Wire – HDPG4K

• 1 X 670 WRMS into 4 ohms @ 12.5 Vdc
• 1 X 950 WRMS into 4 ohms @ 14.4 Vdc
• 1 X 1250 WRMS into 2 ohms @ 12.5 Vdc
• 1 X 1600 WRMS into 2 ohms @ 14.4 Vdc
• Frequency response – 10-20,000 +/- 3dB THD < 0.5%
• Operating Voltage: 9V – 16V
• Current Draw (Music): 70 A
• Current Draw (Max): 140 A
• Recommended Fuse (Music): 100 A
• Total Efficiency: 80%
• Damping Factor: 200
• SNR: 86dB
• Crossover HPF: 10 TO 80Hz
• Crossover LPF: 80 TO 20kHz
• Slope:12dB per octave
• Gain: 0.2V – 12 Vac
• Turn-On Configuration: REM/DC
• THD + N (10% Rated Power): 0.1%
• Product Dimensions (Inches / Millimeters): 9.1 x 5.37 x 2.1 in / 232 x 136.4 x 54 mm
