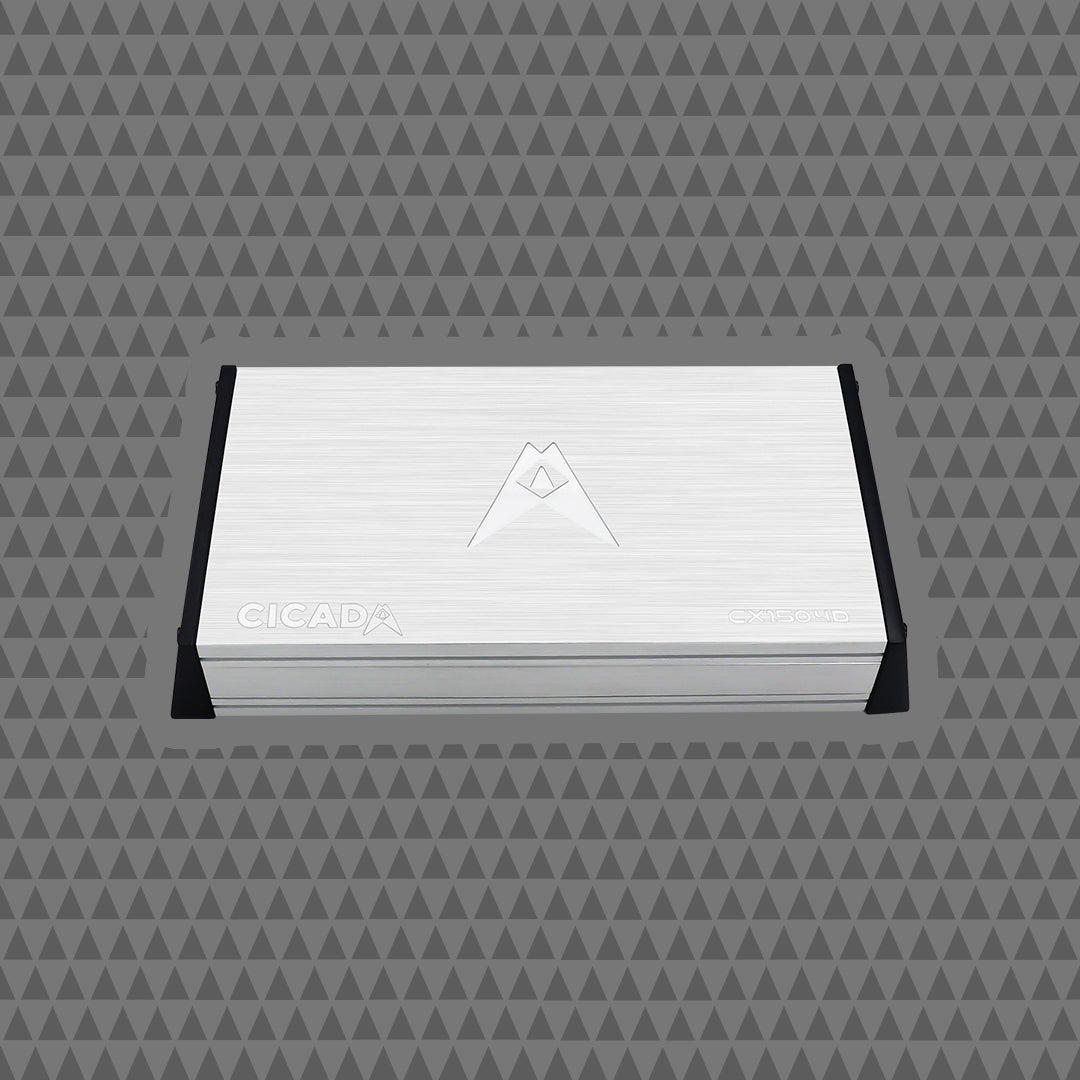

600W x 4 Amplifier

4 CHANNEL POWER AMPLIFIER

• 4 X 70 WRMS into 4 ohms @ 12.5 Vdc
• 4 X 92 WRMS into 4 ohms @ 14.4 Vdc
• 4 X 115 WRMS into 2 ohms @ 12.5 Vdc
• 4 X 152 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

• 2 X 218 WRMS into 4 ohms @ 12.5 Vdc
• 2 X 302 WRMS into 4 ohms @ 14.4 Vdc
• Frequency response – 20-20,000k +/- 3 dB THD < 0.5%
• Operating Voltage: 8V – 16V
• Current Draw (Music): 40 A
• Current Draw (Max): 80 A
• Recommended Fuse (Music): 40 A
• Total Efficiency: 79%
• Damping Factor: 200
• SNR: 91 dB
• Crossover LPF/FULL/HPF : 40 TO 400 Hz
• Slope:12dB per octave
• Gain : 0.2 V – 12 Vac
• Turn-On Configuration: REM/VOX/DC
• THD + N (10% Rated Power): 0.1%
• Product Dimensions (Inches / Millimeters): 7.0 x 4.0 x 1.375 in / 177.8 x 101.6 x 34.9 mm
