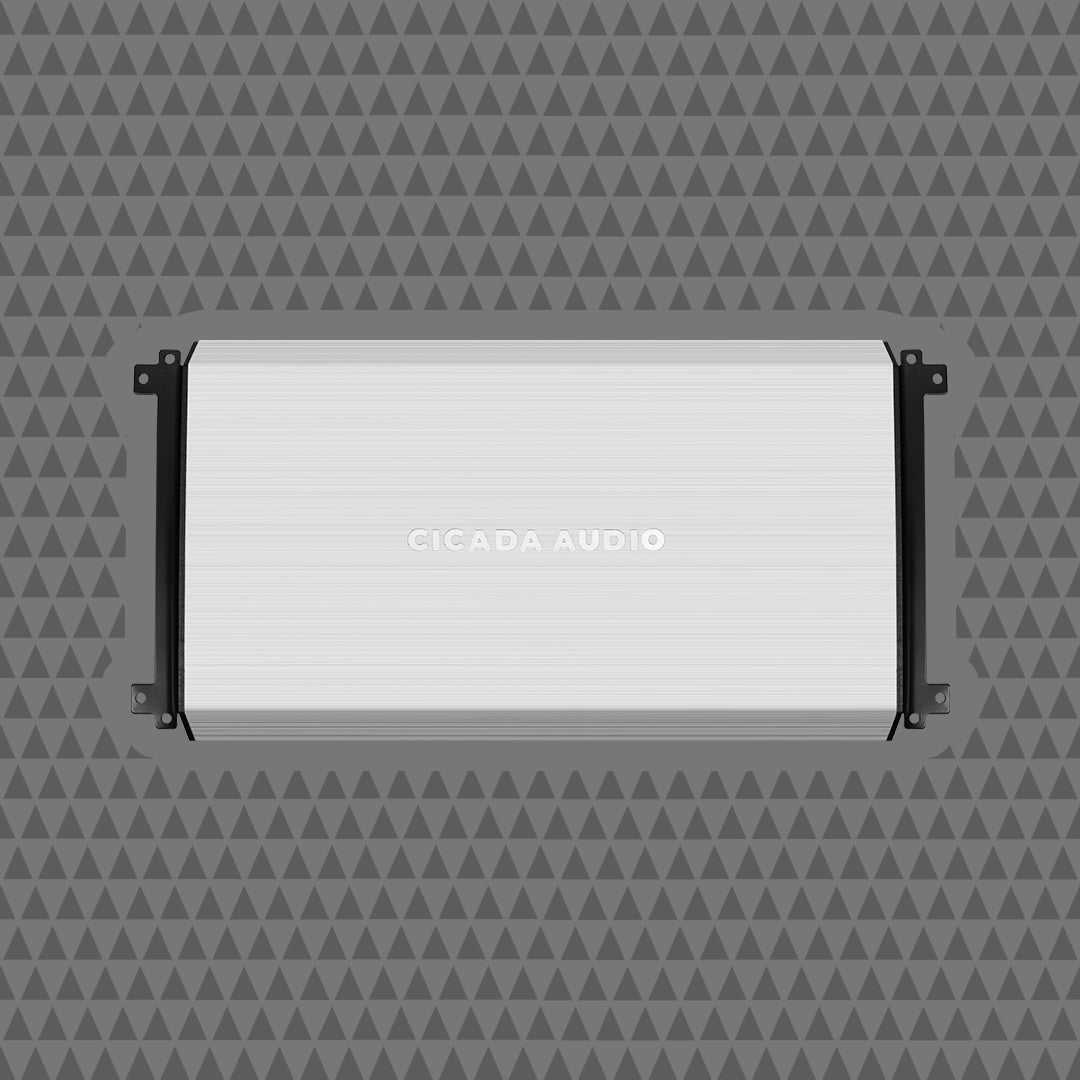

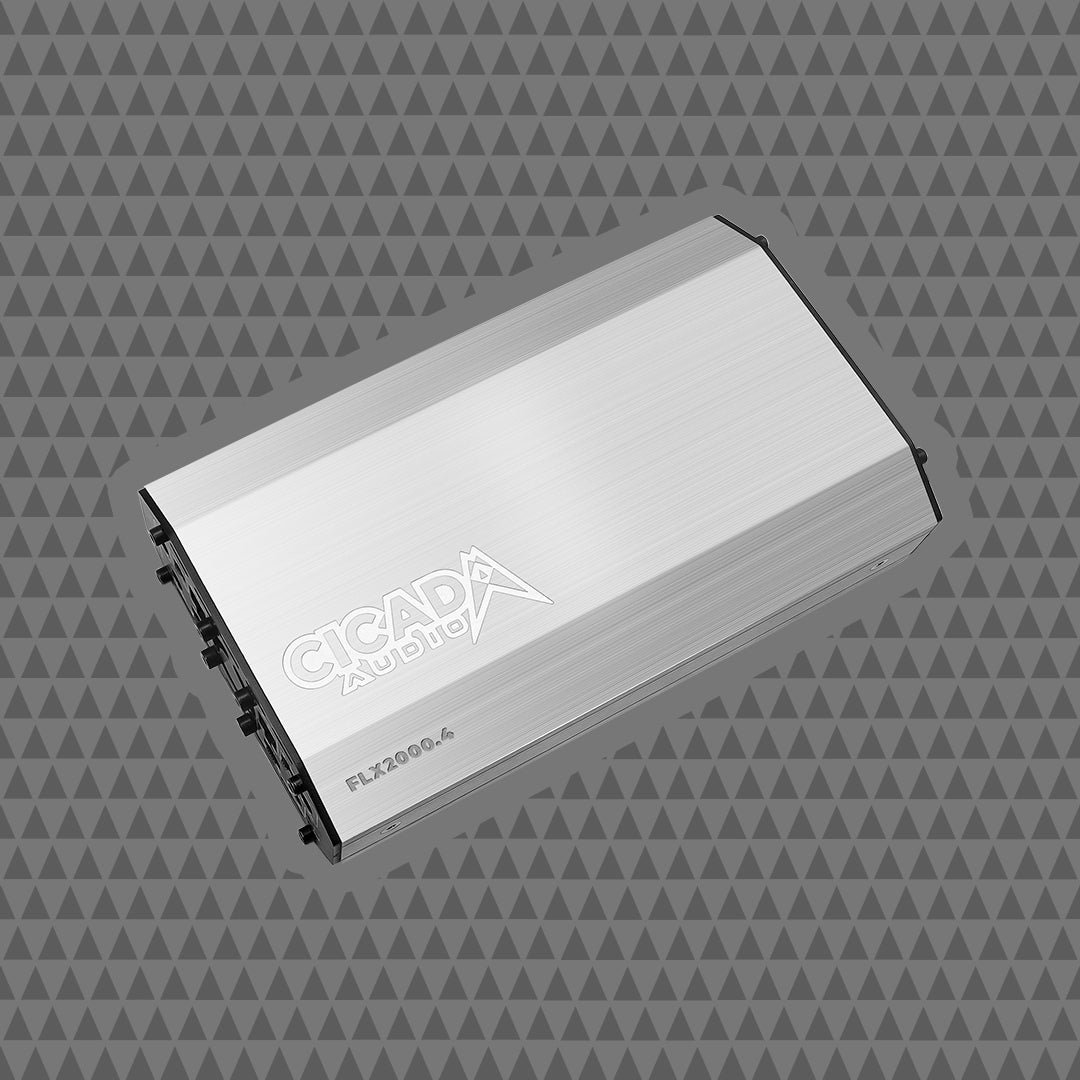

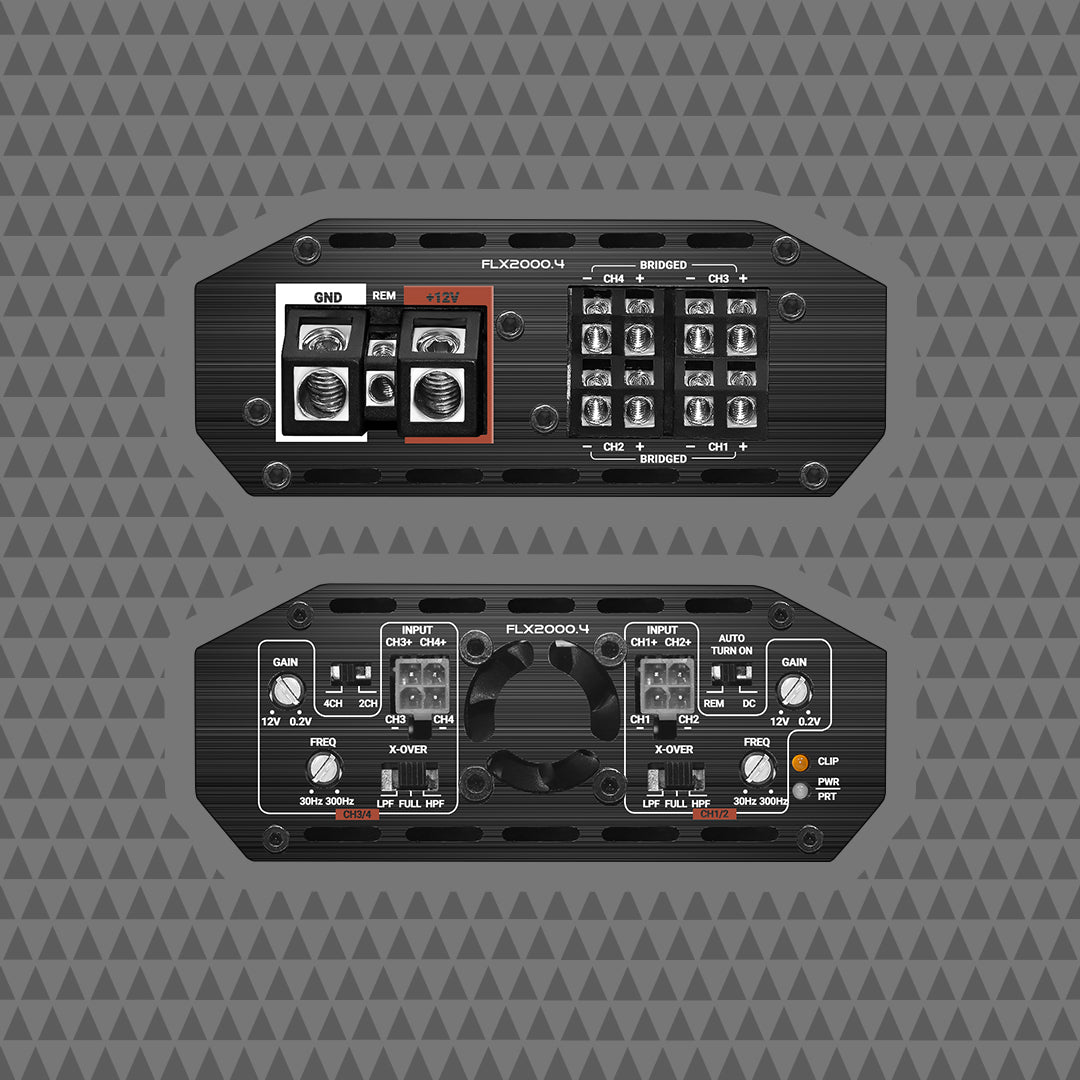

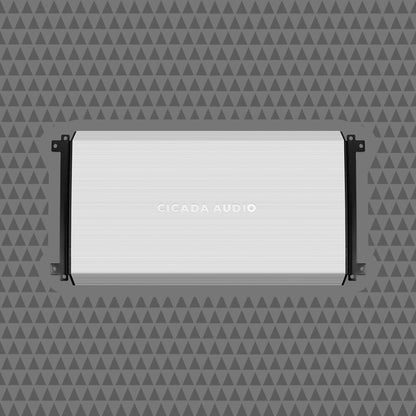

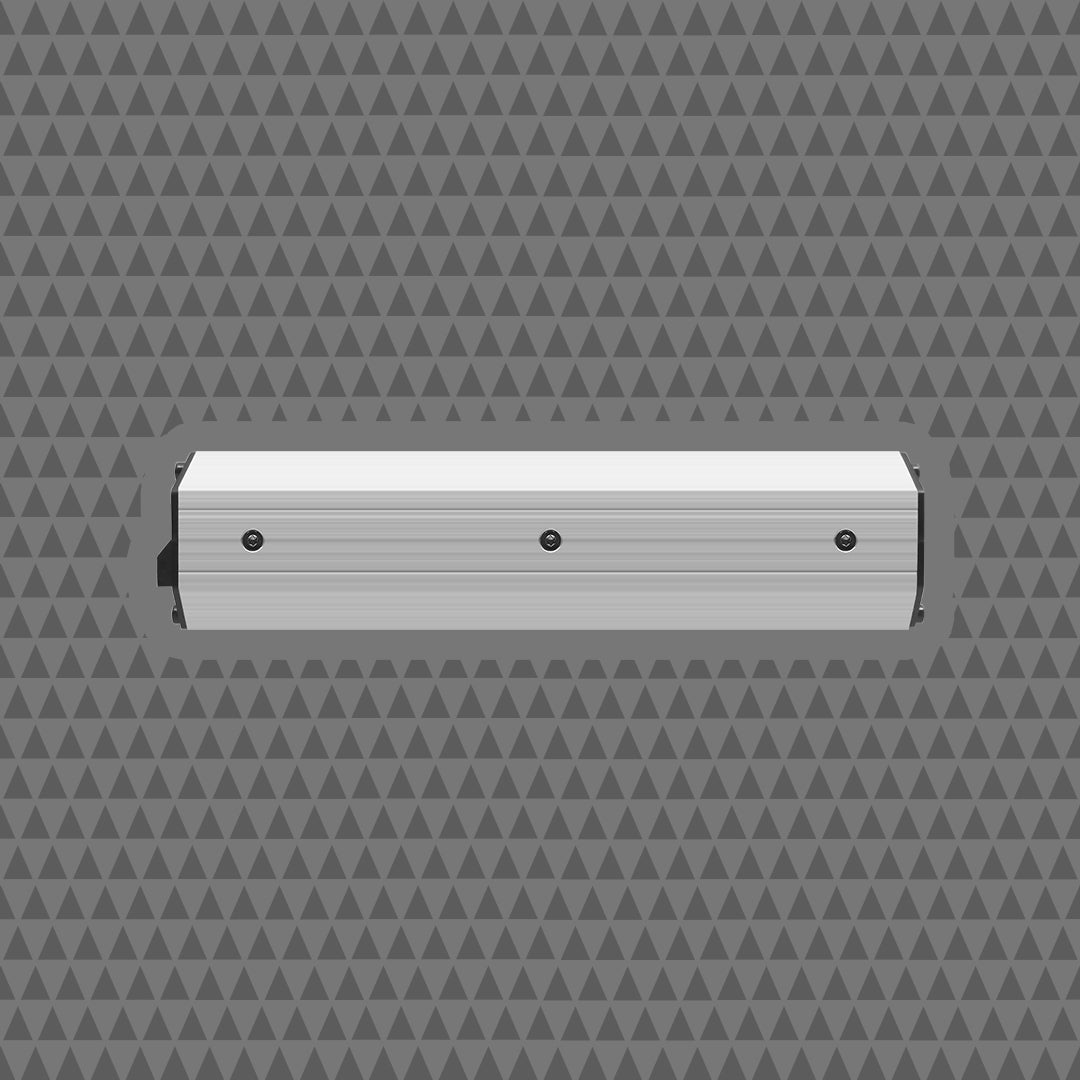

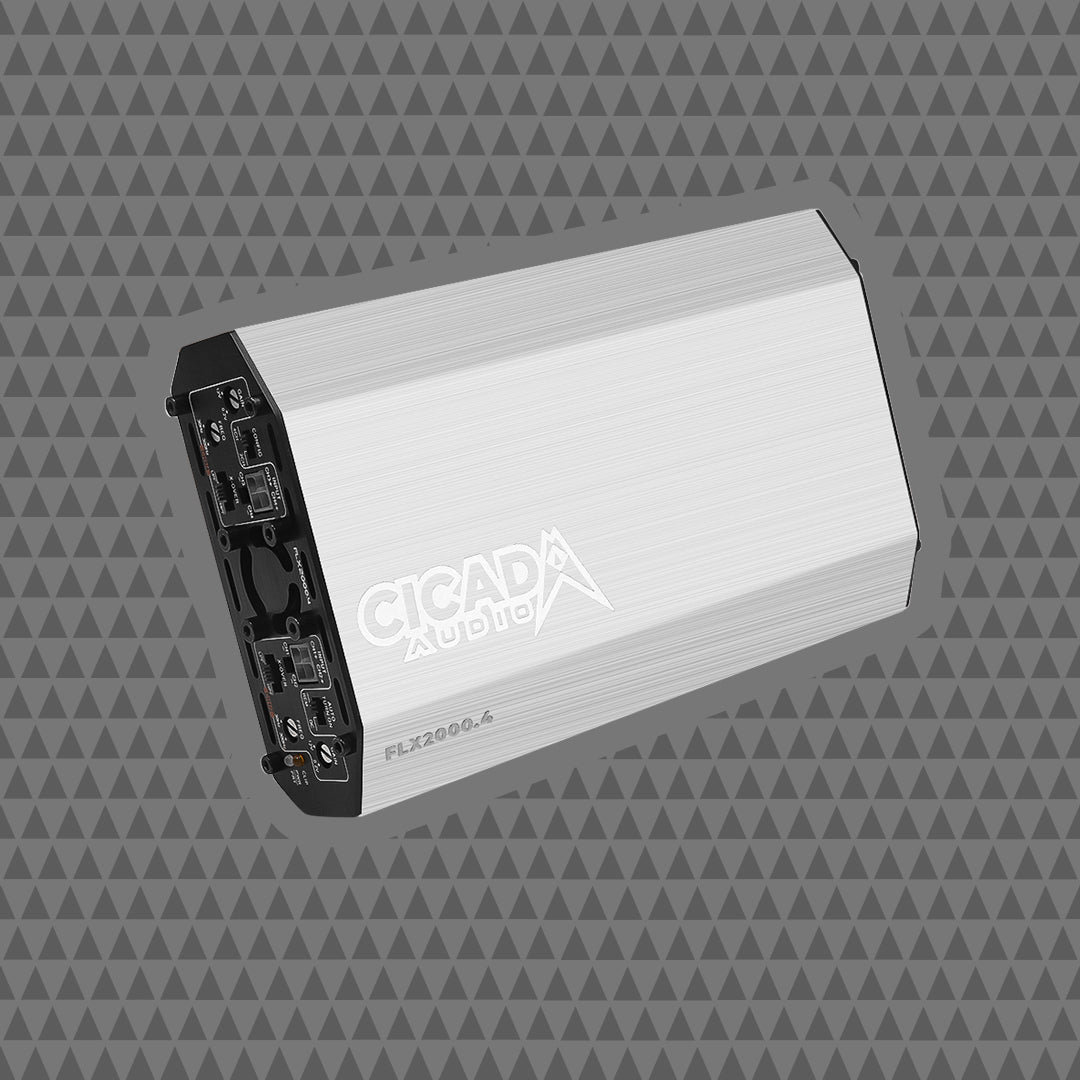

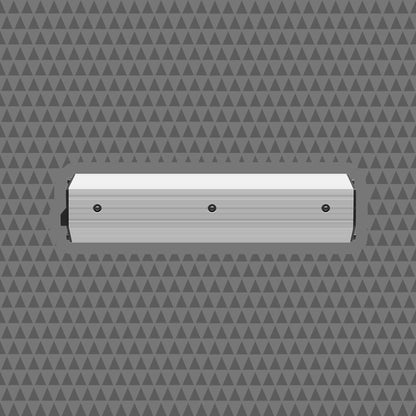

500W x 4 Amplifier

COMING SOON!

4 CHANNEL POWER AMPLIFIER

Requires Lithium Battery Upgrade / 4 AWG Power Wire – HGPG4K

• 4 X 275 WRMS into 4 ohms @ 12.5 Vdc
• 4 X 331 WRMS into 4 ohms @ 14.4 Vdc
• 4 X 450 WRMS into 2 ohms @ 12.5 Vdc
• 4 X 542 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

• 2 X 866 WRMS into 4 ohms @ 12.5 Vdc
• 2 X 1044 WRMS into 4 ohms @ 14.4 Vdc
• Frequency response – 20-20,000 +/- 3dB THD < 0.5%
• Operating Voltage: 8V – 16V
• Current Draw (Music): 60 A
• Current Draw (Max): 240 A
• Recommended Fuse (Music): 120 A
• Total Efficiency: 79%
• Damping Factor: 200
• SNR: 91dB
• Crossover LPF/FULL/HPF: 30 TO 300Hz
• Slope:12dB per octave
• Gain: 0.2V – 12 Vac
• Turn-On Configuration: REM/DC
• THD + N (10% Rated Power): 0.1%
• Product Dimensions (Inches / Millimeters): 8 x 4.9 x 2 in / 200 x 124 x 51 mm
